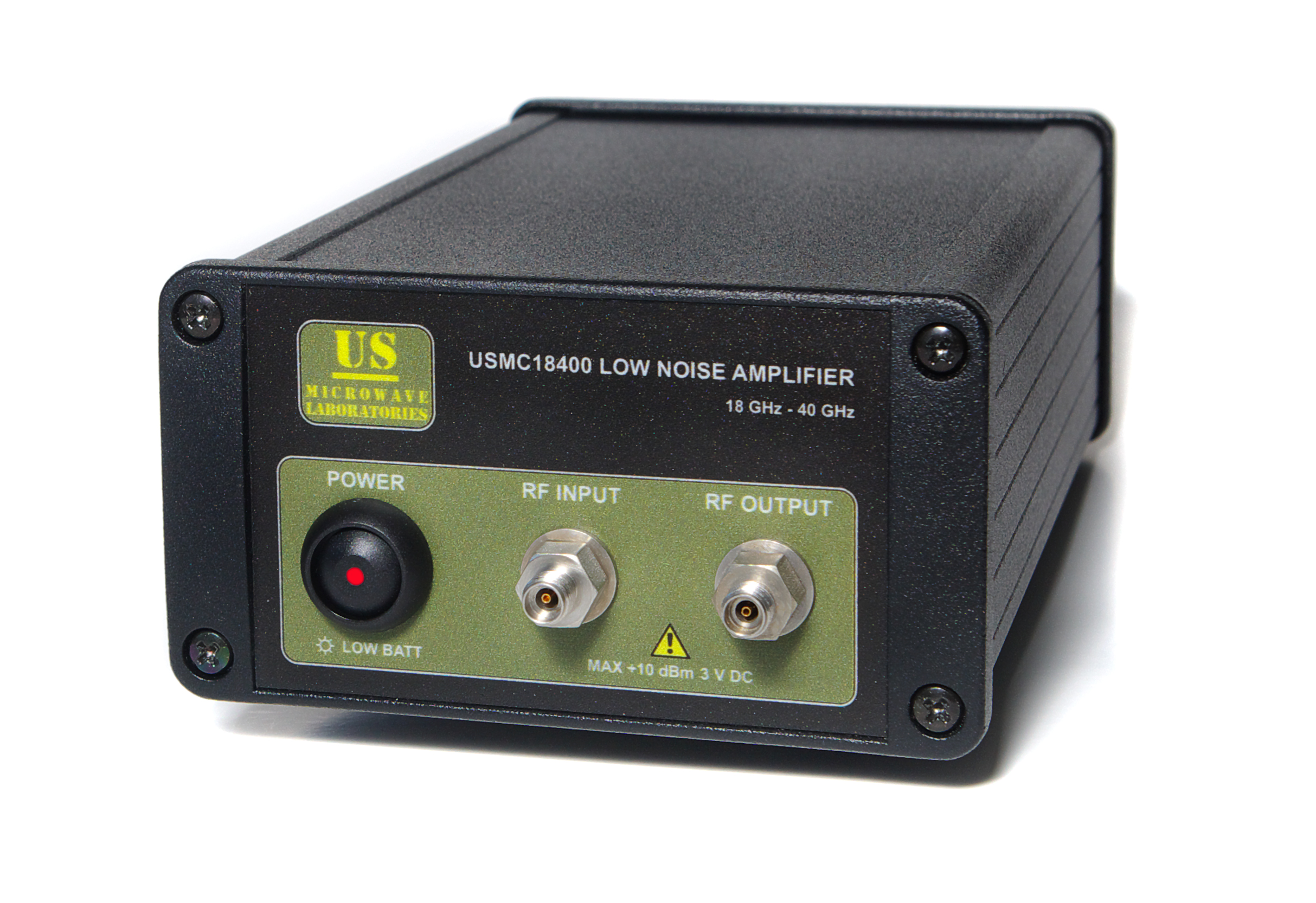

USMC18400 Desktop Low Noise Preamplifier - 18 GHz to 40 GHz
The USMC18400 low noise broadband amplifiers by US Microwave Laboratories offer exceptional performance at a very competitive price. Covering the bandwidth between 18 GHz and 40 GHz, they provide 35 dB of flat gain, very low noise figure, and an optional built-in battery and smart charger.
These amplifiers are ideal for Electromagnetic Compatibility (EMC) testing and certification. The low noise figure and high gain of the USMC18400 permit the visualization of signals that would otherwise appear below the noise floor in a radiated emissions test.
Designed and manufactured in the U.S.A., the USMC18400 conforms to the European RoHS requirements and is ECCN EAR99.



FEATURES

MULTIPLE APPLICATIONS
Electromagnetic Compatibility (EMC) testing
Instrumentation
Antenna field measurements
Communication systems

BROADBAND PERFORMANCE
35 dB of flat gain from 18 GHz to 40 GHz

OPTIONAL BUILT-IN BATTERY
Internal battery for field operation and zero electrical noise or power cables

READY FOR THE TOUGHEST ENVIRONMENT
Wide operating temperature range. IP60 compliant

All our products are designed and manufactured in the U.S.A.
Specifications subject to change without notice
