The USMC0125 low noise broadband amplifiers by US Microwave Laboratories offer exceptional performance at a very competitive price. Covering a bandwidth of more than 11 octaves, they provide outstanding flatness, 30 dB of gain, very low noise figure, and an optional built-in batteryfor more than 20 hours of field operation.
These amplifiers are ideal for Electromagnetic Compatibility (EMC) testing and certification. The low noise figure and high gain of the USMC0125 permit the visualization of signals that would otherwise appear below the noise floor in a radiated emissions test.
Designed and manufactured in the U.S.A., the USMC0125 conforms to the European RoHS requirements and is ECCN EAR99.


FEATURES

MULTIPLE APPLICATIONS
Electromagnetic Compatibility (EMC) testing
Instrumentation
Antenna field measurements
Communication systems

BROADBAND PERFORMANCE
30 dB of flat gain from 1 MHz to 2.5 GHz. Usable up to 3.2 GHz

OPTIONAL BUILT-IN BATTERY
More than 20 hours of field operation in the field

READY FOR THE TOUGHEST ENVIRONMENT
Wide operating temperature range. IP65 compliant

RF & microwave components and equipment

Copyright US Microwave Laboratories
USMC0125 Desktop Low Noise Preamplifier - 1 MHz to 2.5 GHz
All our products are designed and manufactured in the U.S.A.
Specifications subject to change without notice
USMC0125 Low Noise Preamplifier Brochure
Typical measured performance

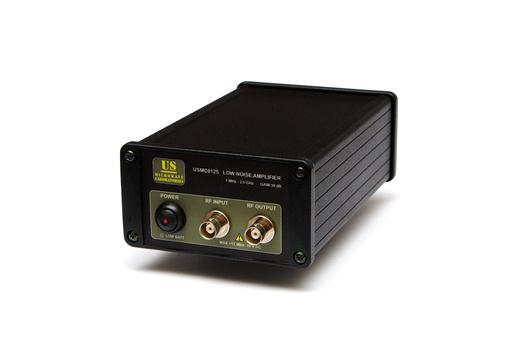

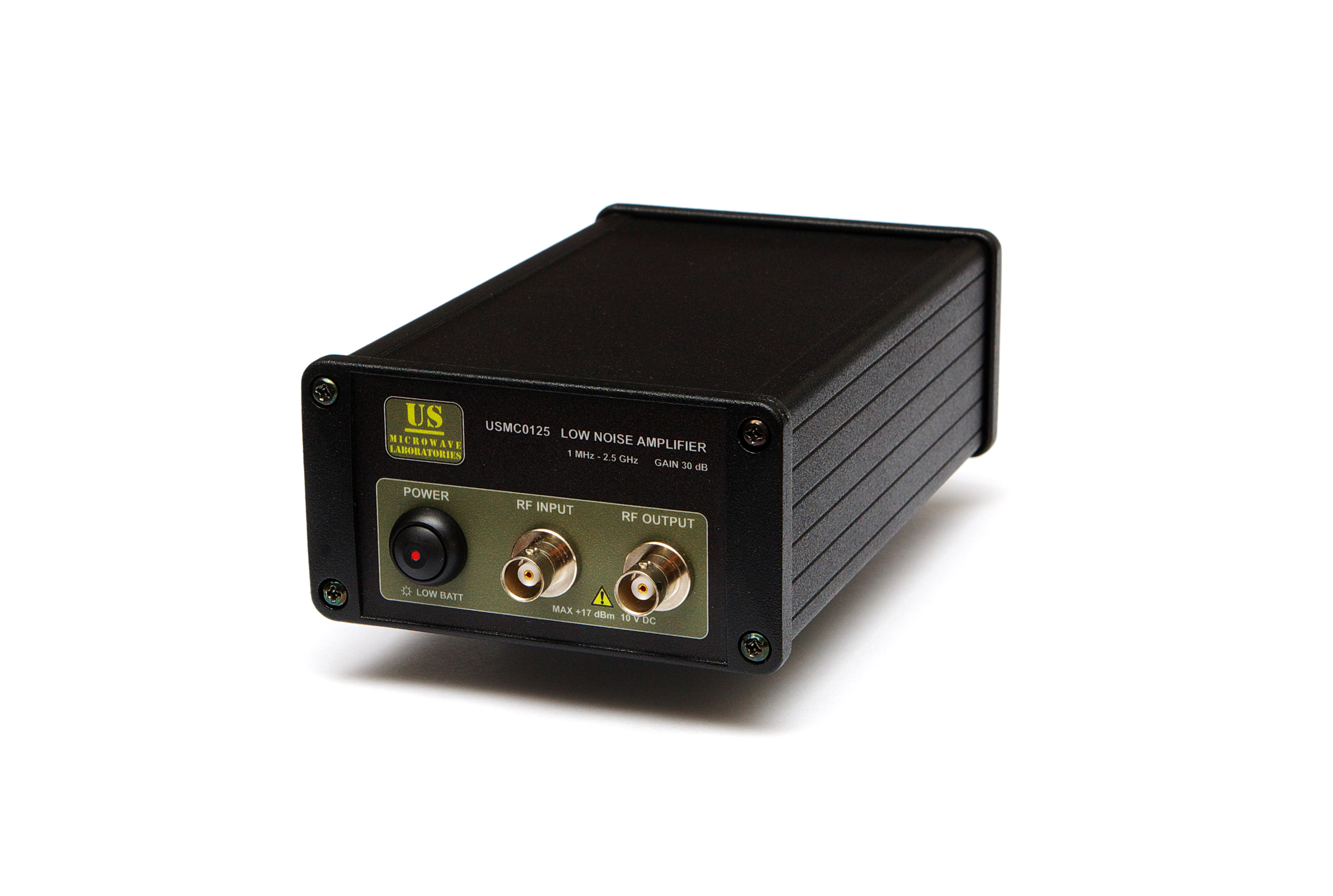

BNC female connectors

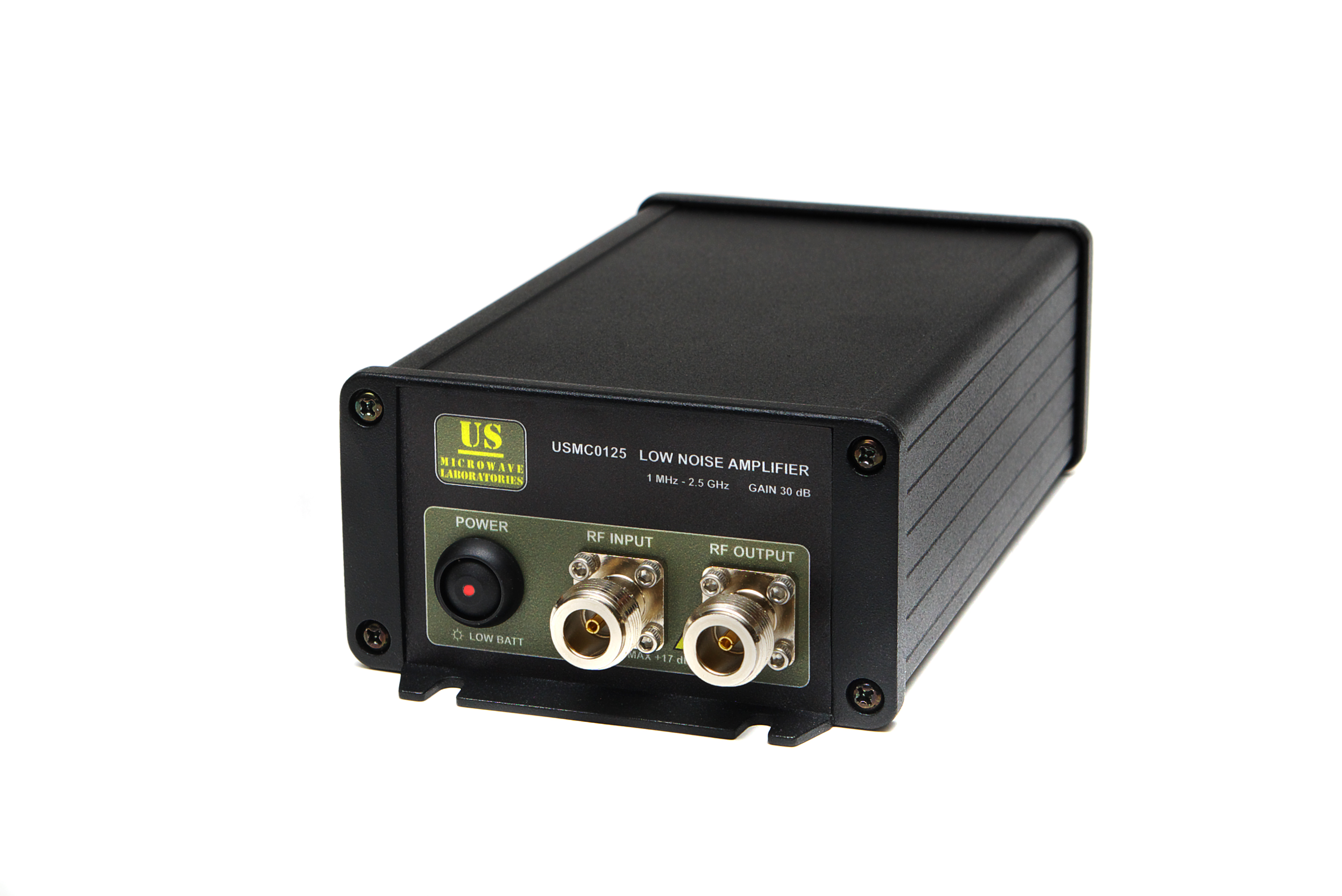

N female connectors with bracket

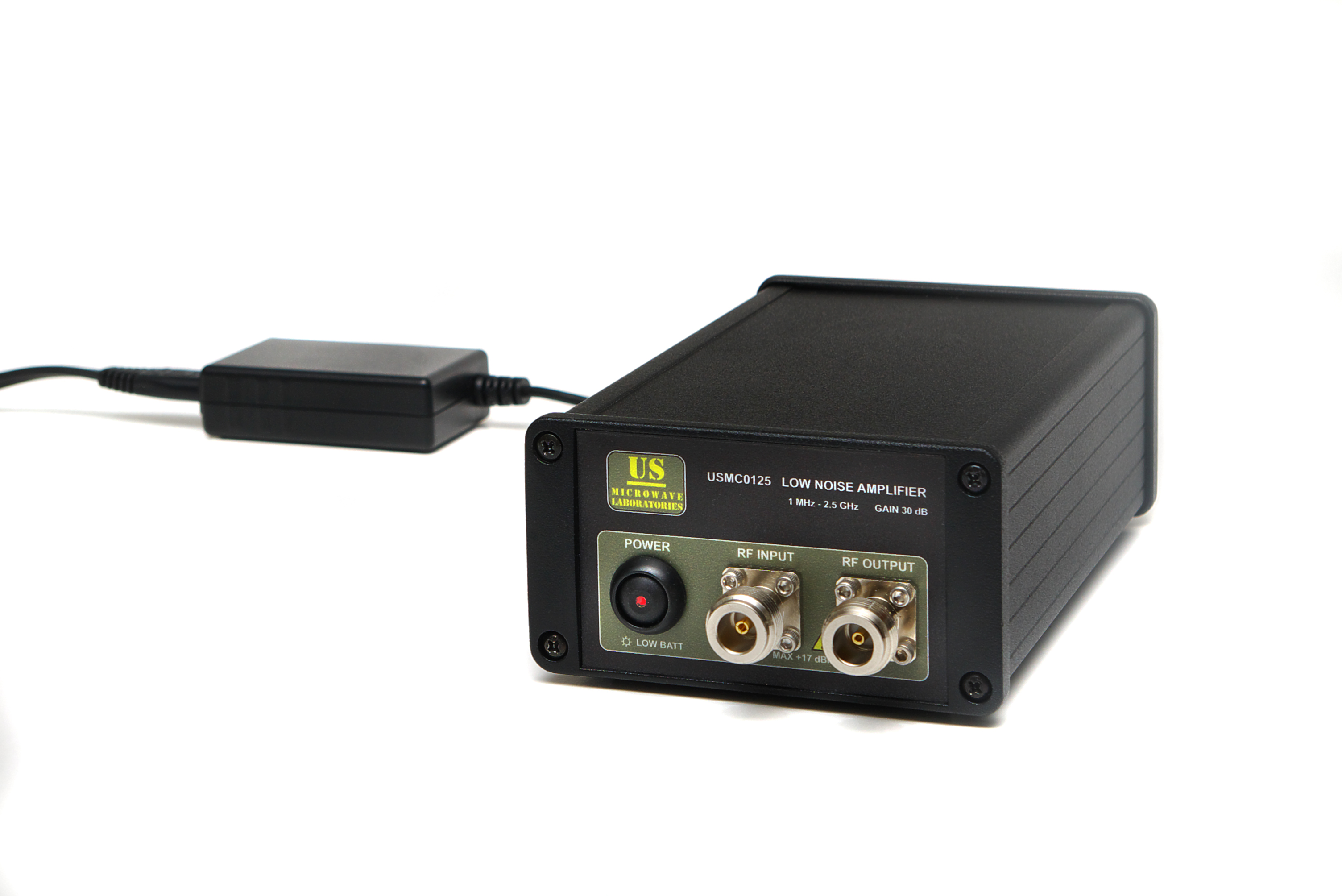

N female connectors with rubber feet and ac adaptor
